Home Power Tools Concrete Drilling & Demolition

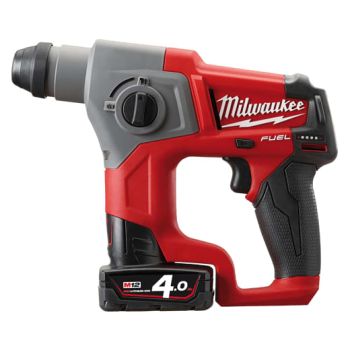

M12 FUEL SDS-Plus Hammer (2 Mode)

User Manual

M12 CH

REDLINK Intelligence: Provides optimized performance and overload protection using total system communication between tool, battery and charger
REDLITHIUM-ION Battery Technology: Superior pack construction, electronics, and performance deliver more work per charge and more work over pack life
Electropneumatic mechanism: Drills up to 13mm holes in poured concrete and masonry

What's Included

Categories:

Concrete Drilling & Demolition

Where To Buy

Related Products

M18 FUEL 32mm SDS Plus Rotary Hammer

M18 FHPX-0X0 ASIA

M18 BRUSHLESS 26mm SDS-PLUS HAMMER

M18 BLH-401B SA

M18 FUEL 26mm SDS Plus Rotary Hammer

M18 FHX-0X0 ASIA

MX FUEL Plate Compactor

MXF PC50-0 APJ

Features

REDLINK Intelligence: Provides optimized performance and overload protection using total system communication between tool, battery and charger
REDLITHIUM-ION Battery Technology: Superior pack construction, electronics, and performance deliver more work per charge and more work over pack life
Electropneumatic mechanism: Drills up to 13mm holes in poured concrete and masonry
Powerful 12-volt motor: Delivers 0-900 RPM and 0-6,575 BPM for superior performance
Compact, lightweight design: Allows you to work comfortably in tight spaces and all day
2-Mode operation: Choose rotary hammer or rotation only for maximum versatility
LED light: Illuminates the work surface

Range Spec

What's Included

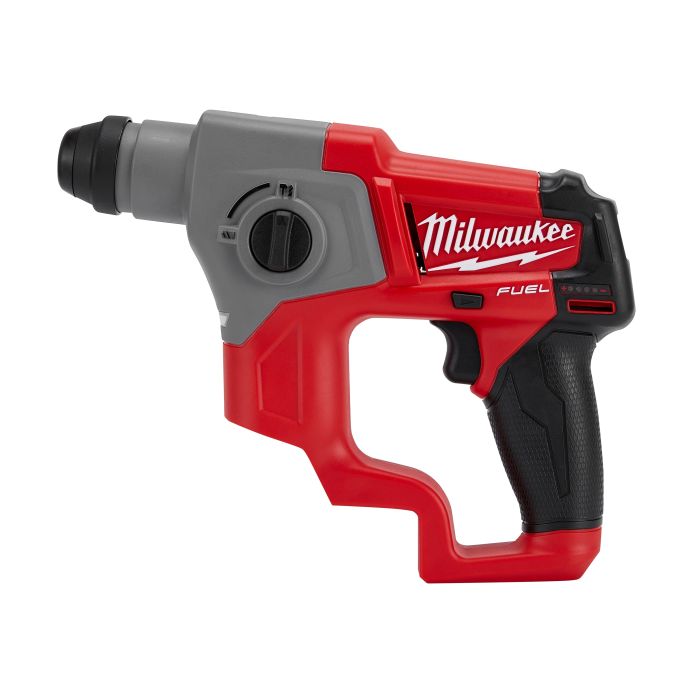

M12 CH-0C ASIA

M12 CH-402C

M12 CH-0 (1) Hard Case (1)

M12 CH-0 (1) M12B4 (2) C12C (1) Hard Case (1)

Product Specifications

Length (mm)

253

Battery platform

M12 REDLITHIUM-ION

Voltage (V)

12

FUEL Gauge

Yes

LED Light

Yes

No load speed (rpm)

0 - 900

Max. drilling steel (mm)

10

Max. drilling wood (mm)

13

Tool Reception

SDS-Plus

Blow energy (J)

1.1

Max. drilling concrete (mm)

13

Optimised drilling capacity in concrete (mm)

Ø 5.5 - 12

Vibration drilling / chiselling

4.4

Modes

Rotary Hammer and Rotation Only

Max. hammer rate (bpm)

0 - 6575

Handle Style

D-Handle

Weight with battery pack if applicable (kg)

1.9kg (4.0Ah)
